EC44 Temperature Controller

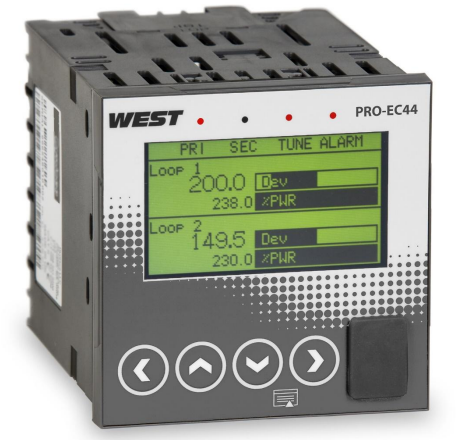

The West Pro-EC44 is a versatile 1/4 DIN (3.78" × 3.78") process controller designed for precise temperature and process control across a wide range of industrial applications. Its large, easy-to-read LCD display simplifies programming and operation, helping reduce operator error and improving usability.
As an advanced controller, the Pro-EC44 can manage complex ramp-and-soak heat treatment processes, with memory capable of storing up to 64 profiles and a total of 255 shared segments. For added functionality, an optional data logger with a real-time clock records process data, which can be retrieved via USB or through serial communication.  The controller also supports auxiliary functions, such as triggering event alarms or activating over-temperature shutoff systems for added safety and automation.

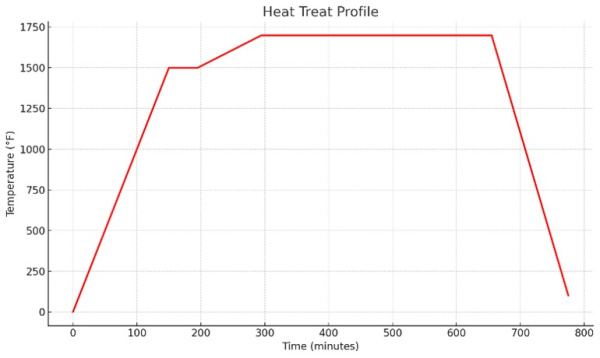

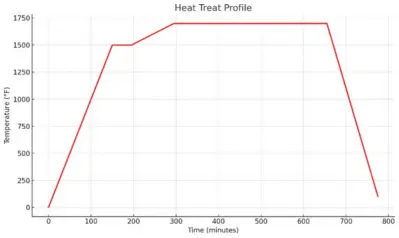

5-Segment Heat Treatment Profile Example:  An operator can program the Pro-EC44 to:    This entire profile can be saved in memory, allowing operators to repeat the cycle quickly and reliably each day with just a few button presses.
