Controls for Tool Room / Laboratory Furnaces

  • West Pro EC44 Dual Temperature Controller
  • Watlow High Limit Controller
  • Nanodac Controller
  • EZ Zone Limit Controller
  • Watlow-F4T-Integrated-Controller
  • Future Design MCT4 Controller

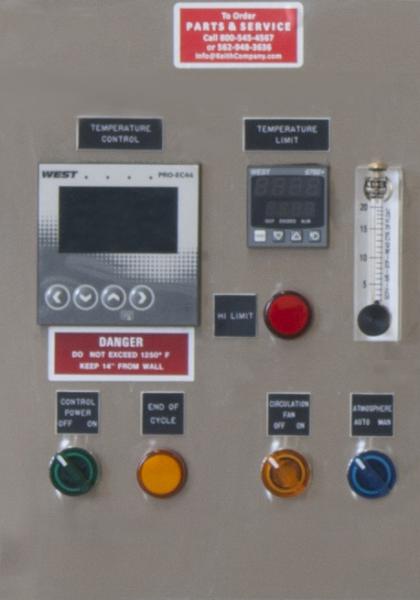

  • Single Atmosphere Furnace without recorder

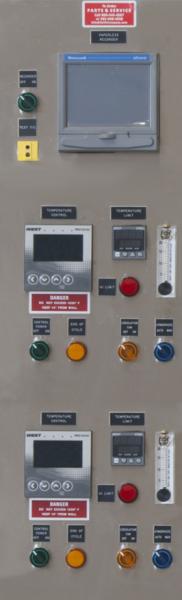

  • Dual Heat Treat Furnace Atmosphere with recorder
Click to enlarge
West Pro-EC44 Dual Temperature Controller
The Pro-EC44 dual temperature controller has been designed to simplify user operation through an intuitive HMI combined with easy-to-use configuration and simulation software. This allows the controller to be used by a variety of personnel without compromising the functionality available.
The Pro-EC44 dual temperature controller is well suited to challenging applications such as: Plastics, Extrusion & Rubber, Industrial Ovens & Furnaces, Laboratory and Test Equipment, Environmental Chambers and more.

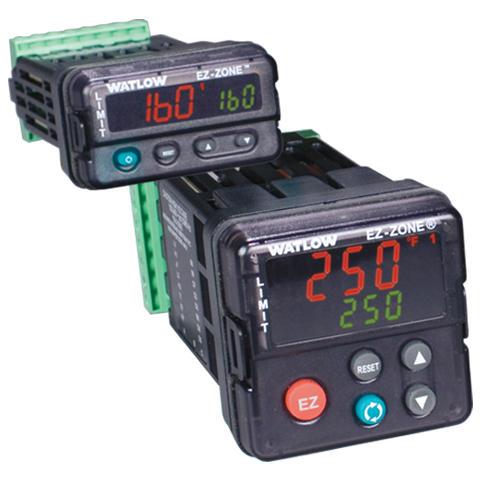

EZ-Zone Limit Controller
The EZ-ZONE PM panel mount limit controllers from Watlow® offer control options to reduce system complexity and the cost of thermal loop ownership. The EZ-ZONE PM limit controller provides high amperage power controller output and over/under limit control in one space saving, panel mount package. The PM3 has a single setpoint controller for ease of operation.

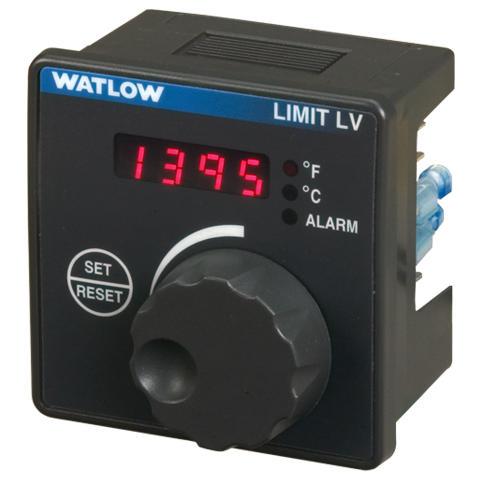

Watlow High Limit Controller

Watlow's microprocessor-based temperature limit controller provides an economical solution for applications requiring temperature limit control. Limits are available in a broad range of packaging options, allowing selection of the best version for an application.

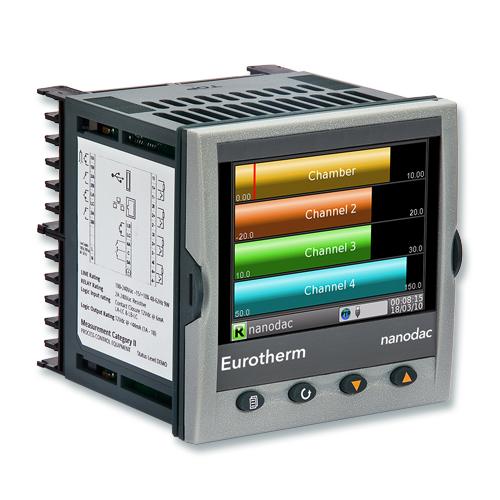

Nanodac™ recorder
The nanodac™ recorder/controller offers the ultimate in graphical recording combined with PID control for a box of its size. The compact ¼ DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control.

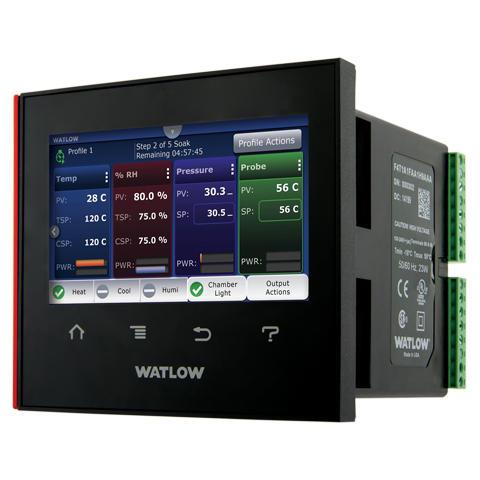

Watlow F4T
The F4T with INTUITION temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility.

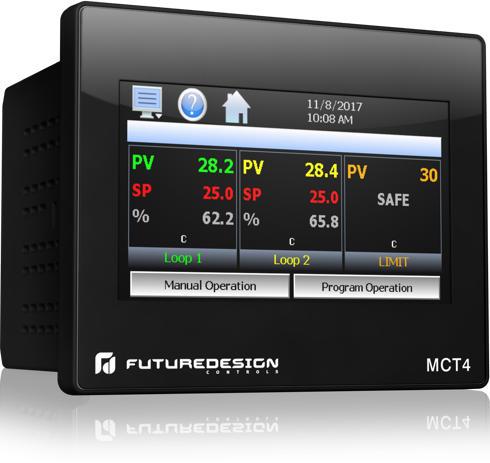

FutureDesign MCT4
The MCT4 system combines multiple control and monitor components in a single ¼ DIN device with a 4.3” color touch screen. Offering 1-3 loops of control, one may be an FM Approved High Limit. The MCT4 includes Paperless Recorder, Ramp/Soak Profiling, E-mail/SMS on alarm, File Transfer via FTP/USB/Cloud, Modbus RTU Serial RS485 & TCP-IP, Remote Access via VNC, Live Data-Streaming and more. The MCT4 allows users to select PC type menu or smart device icon navigation to match familiar personal preferences.

Automated Inert Gas Package
This option will allow the furnace operator to program the temperature controller for the introduction of an inert gas into the heating chamber as an event to either begin the gas flow or cease the gas flow per the controller’s programmed instructions by either time or temperature. Controllers for this option will be upgraded to the West EC44 temperature controller and the West 6700 over-temperature controller. The pictures show the automated inert gas control panel with and without the optional Honeywell eZtrend recorder for data logging that can be purchased with the automated inert gas package; the recorder is optional and is not a standard part of the automated package.
