Flanged Immersion Heaters

Click to enlarge

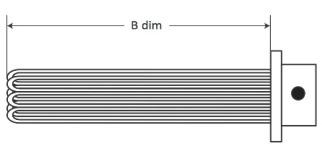

Flanged Immersion Heaters consist of “U” shaped tubular elements. We weld them to flanges from two and half inches to twenty-four inches. An alternative to flange immersion heaters are L-shaped or bottom immersion heaters or over the side immersion heaters and for lower wattage requirements we offer screw plug immersion heaters.

Material sheaths need to be selected upon the corrosiveness of the solutions.

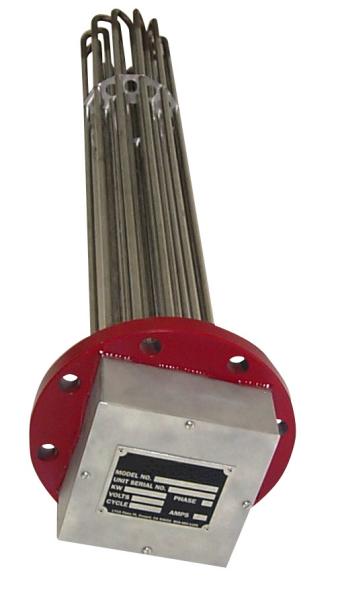

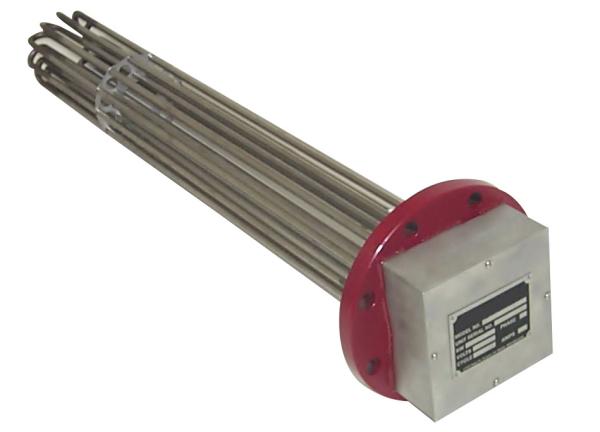

Flanged Immersion Heaters, both round flange and square flange models are available for applications requiring larger wattages. Flanged heaters are made from tubular heaters or Mighty blade elements brazed or welded into a pipe flange. They are used in large capacity vessels, high pressure applications and are installed by bolting the unit to a matching flange welded to the vessel wall. The flanges are made out of carbon steel or stainless steel. They are rated for 150lbs, 300 lbs or 600 lbs.

  1. Sheath material: copper, steel, stainless steel, Incoloy, Teflon (PTFE) coating available.
  2. Electrical junction / terminal box can be NEMA or IP rated, moisture resistant or explosion proof.

Contact us for further information.
