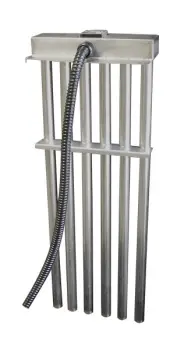

Over the Side Immersion Heater CNSS-6-474

(CNSS-6-474)
30kW; 6-tubes over the side immersion heater for tank depth (A dim) 47in; 316SS; 480V-3ph
Features
  • 34 Watts per square inch (WSI)
  • All welded junction box for harsh environment
  • Electropolished available upon request
  • Liquid Level Control recommended
  • Visual indicator for min solution level
Specifications
  • Volts/Phase (V - ph): 480V-3ph
  • Heater Type: Over the side Immersion
  • Sheath (material): 316SS
  • Heater length (Dim B): 47in
  • Power (Watts): 30000
  • Power Range (kW): 20.1 to 36
